Variable Frequency Drive Panel(VFD Panel)
A VFD (Variable Frequency Drive) Panel is an industrial electrical control panel used to control the speed and torque of AC motors by varying the frequency and voltage of the power supply. It enables smooth and efficient motor operation based on the actual load requirement, instead of running the motor at constant full speed.
A VFD panel mainly consists of a Variable Frequency Drive unit, circuit breakers, contactors, relays, MCB/MCCB protection devices, control wiring, cooling fans, and an enclosure. It may also include an HMI display or control switches for easy monitoring and operation. All these components work together to ensure safe, controlled, and efficient motor performance. VFD panels operate by converting incoming AC power into DC power and then inverting it back into AC with adjustable frequency. By changing this frequency, the speed of the motor can be precisely controlled. This allows better process control and optimized energy usage depending on system demand.
Applications of VFD Panel
01
Water Treatment Plants
VFD panels are widely used to control pumps and motors in water treatment and wastewater management systems. They help maintain constant water pressure and reduce energy consumption.
02
HVAC Systems
In HVAC applications, VFD panels control the speed of fans, blowers, chillers, and cooling towers. This improves temperature control, reduces electricity usage, and increases system efficiency.
03
Industrial Pumps
VFD panels are used in pumping systems to regulate motor speed according to flow requirements. This helps save energy and prevents sudden pressure changes in pipelines.
04
Conveyor Systems
Manufacturing and packaging industries use VFD panels to control conveyor belt speed for smooth material handling and improved production efficiency.
05
Compressors
VFD panels help air compressors operate efficiently by adjusting motor speed based on air demand, reducing power consumption and mechanical wear.
06
Automation and Process Industries
VFD panels are an important part of industrial automation systems where variable motor speed and process control are required for efficient operation.
Frequently Asked Questions
What is a VFD panel?
A VFD (Variable Frequency Drive) panel is an electrical control panel used to control the speed and torque of AC motors by varying the frequency and voltage supplied to the motor.
What are the advantages of using a VFD panel?
VFD panels help save energy, provide smooth motor starting and stopping, reduce mechanical stress, improve process control, and increase equipment life.
Where are VFD panels commonly used?
VFD panels are widely used in pumps, fans, compressors, conveyors, HVAC systems, water treatment plants, textile industries, and manufacturing units.
How does a VFD panel save energy?
A VFD panel controls motor speed according to the actual load requirement, preventing motors from running at full speed unnecessarily and reducing power consumption.
Can a VFD panel protect motors from damage?
Yes, VFD panels provide protection against overload, overvoltage, undervoltage, overheating, and short circuits, ensuring safe motor operation.
What types of motors can be used with a VFD panel?
VFD panels are mainly used with AC induction motors and can also work with certain synchronous motors depending on the application.
What industries use VFD panels?
Industries such as water treatment, HVAC, food processing, cement, steel, textile, chemical, and automation industries commonly use VFD panels.
What is the difference between a VFD panel and a starter panel?
A starter panel only starts and stops the motor, while a VFD panel controls motor speed, torque, and acceleration along with providing advanced protection features.
Does a VFD panel reduce maintenance costs?
Yes, by providing smooth motor operation and reducing mechanical stress, VFD panels help reduce wear and tear, resulting in lower maintenance costs.
Can VFD panels be customized?
Yes, VFD panels can be customized based on motor capacity, application requirements, automation needs, and industry standards.
Similar Product
3 AXIS SERVO CONTROLLED PANEL

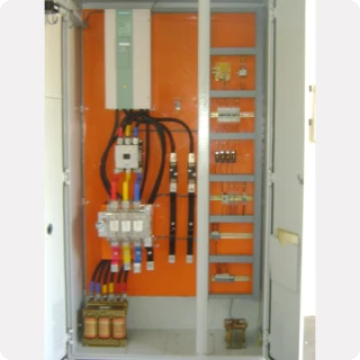

200A DC DRIVE PANEL

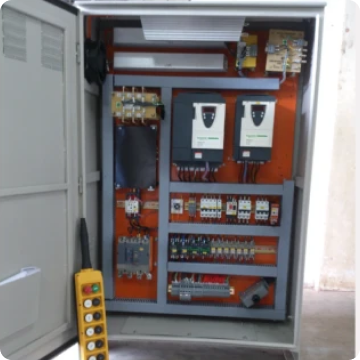

CRANE CONTROL VFD PANEL
